Getting started

This page briefly explains how to get started with a very simple example using FramAT’s command line interface. Notice that a more detailed user guide can be found here: User guide.

First, open a terminal and simply run the command framat. A short help page should show up. FramAT has different operating modes like run and example. We can use the latter mode to create a very simple working example.

framat example

This will create a single JSON file called framat_beam.json in your local working directory. This file defines a simple cantilever beam loaded with a point load at it tip. To compute the deformation run:

framat run framat_beam.json -v

The sub-command run tells FramAT to perform a FEM analysis, followed by the analysis definition (in this case framat_beam.json). The additional flag -v will make FramAT output additional information about the execution progress on the terminal screen. An interactive plot is created.

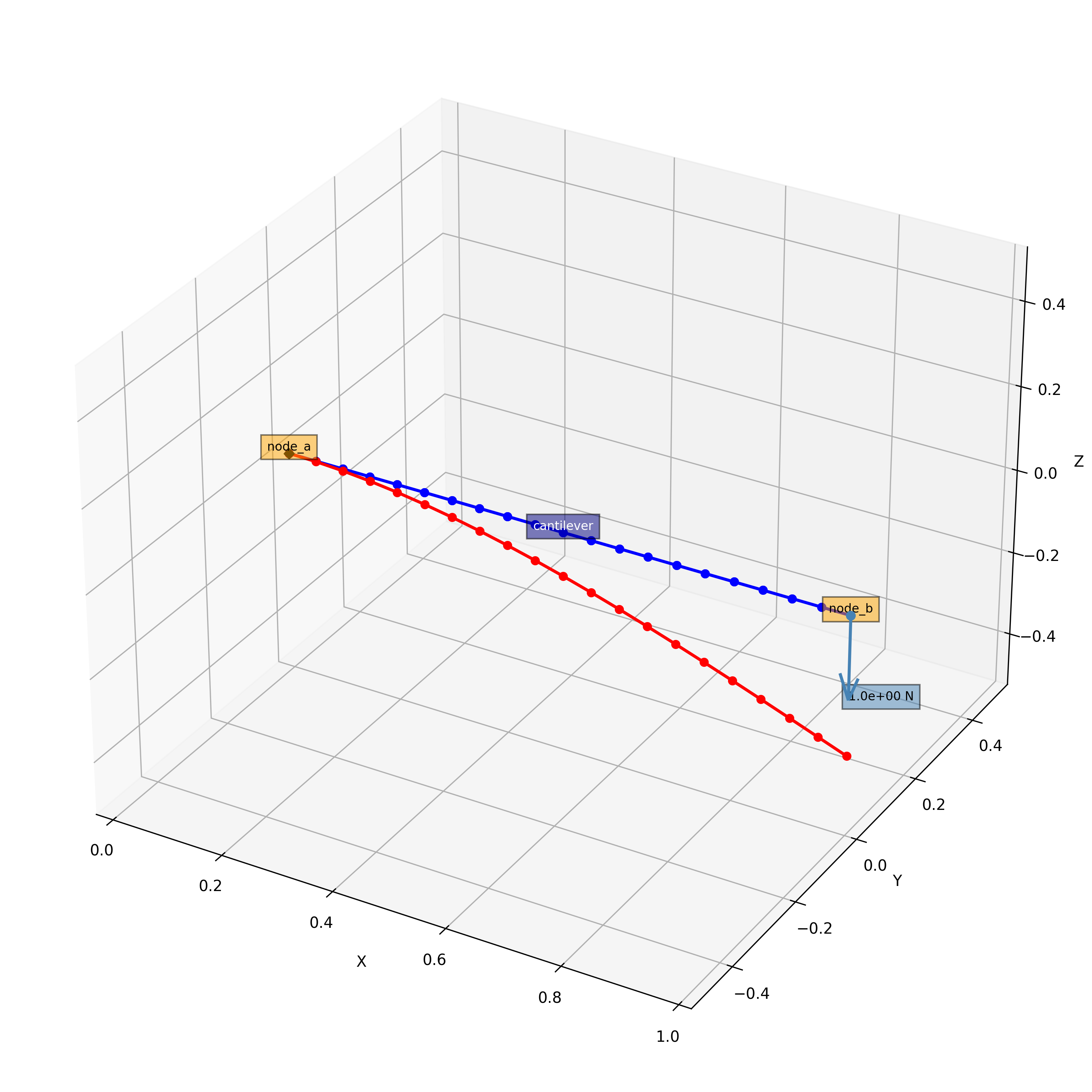

Fig. 2 Simple cantilever beam. Undeformed and deformed beams are plotted in blue and red, respectively.

Feel free have a look at the file framat_beam.json. You can try to change values in this file and re-run the analysis. However, don’t be worried if you don’t understand everything yet. More detailed instructions will be given on the following pages.

See also

Learn more about the FramAT’s command line interface:

• Command line interface
